MSI MEG X570 UNIFY AM4 AMD X570 SATA 6Gb/s ATX AMD Motherboard

$199.00

Out of stock

Description

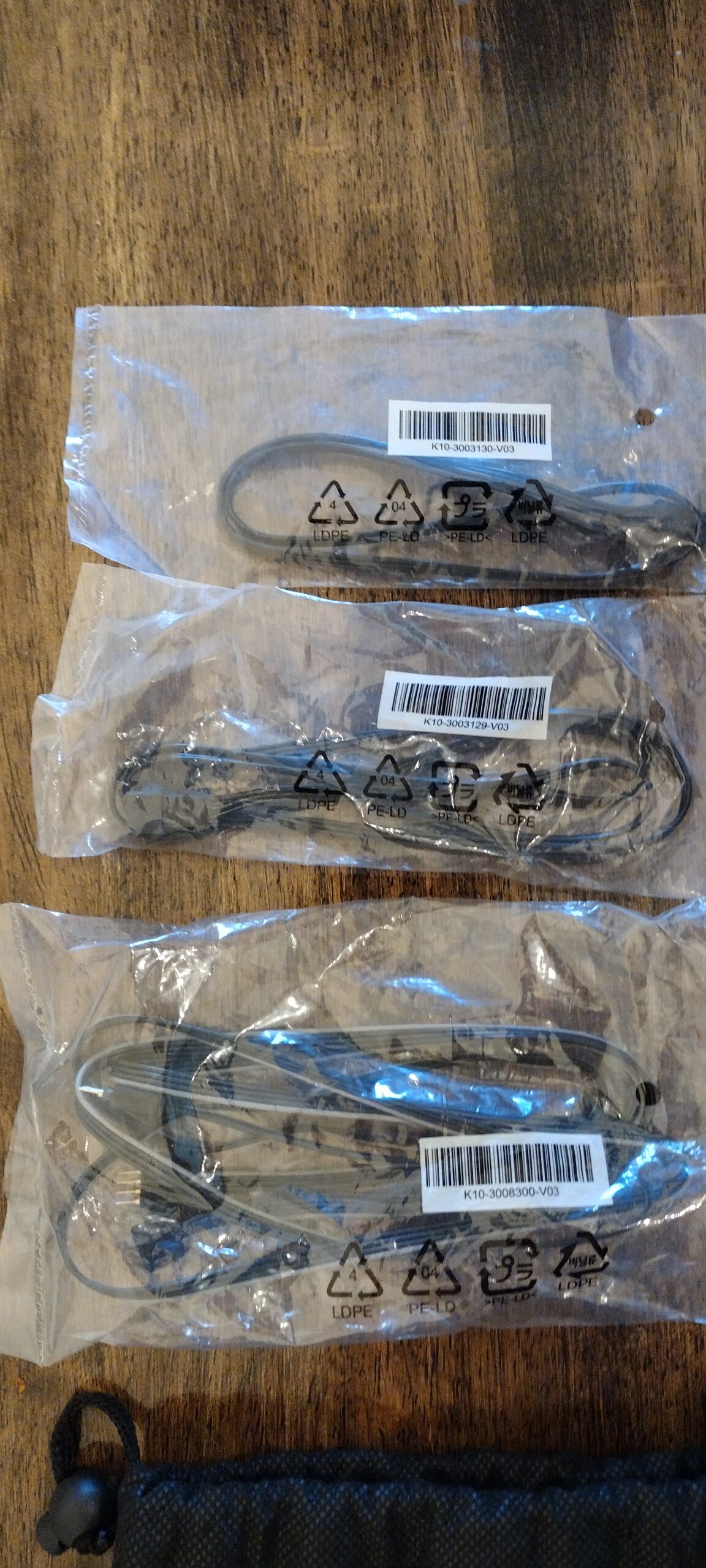

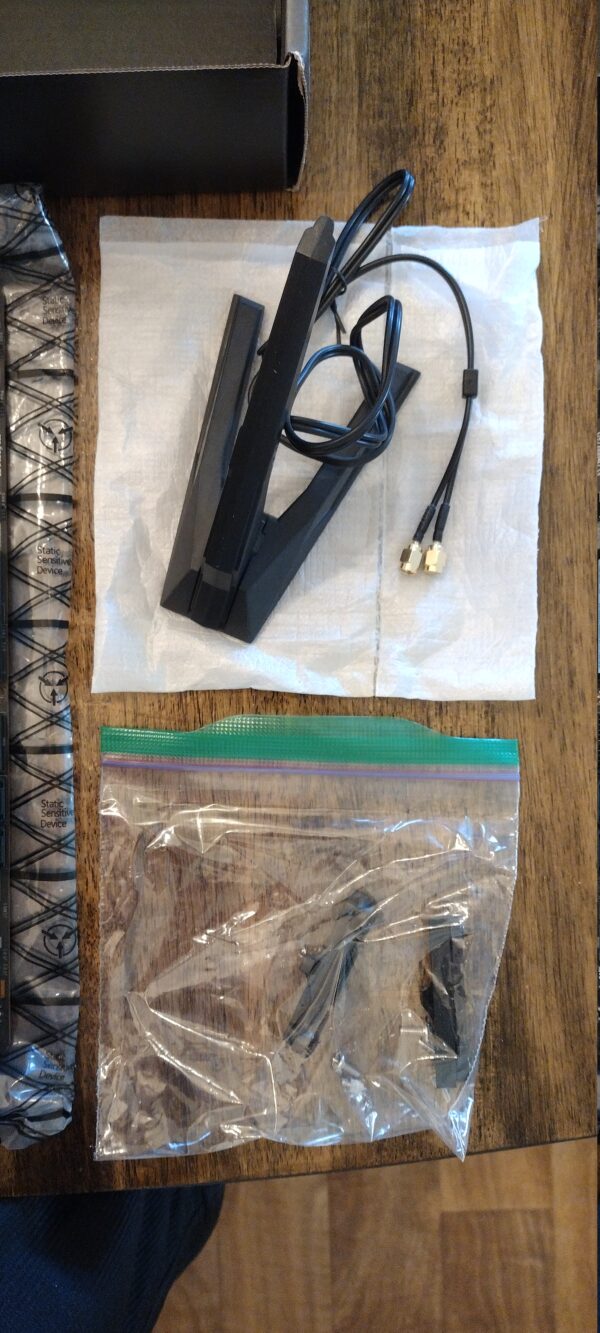

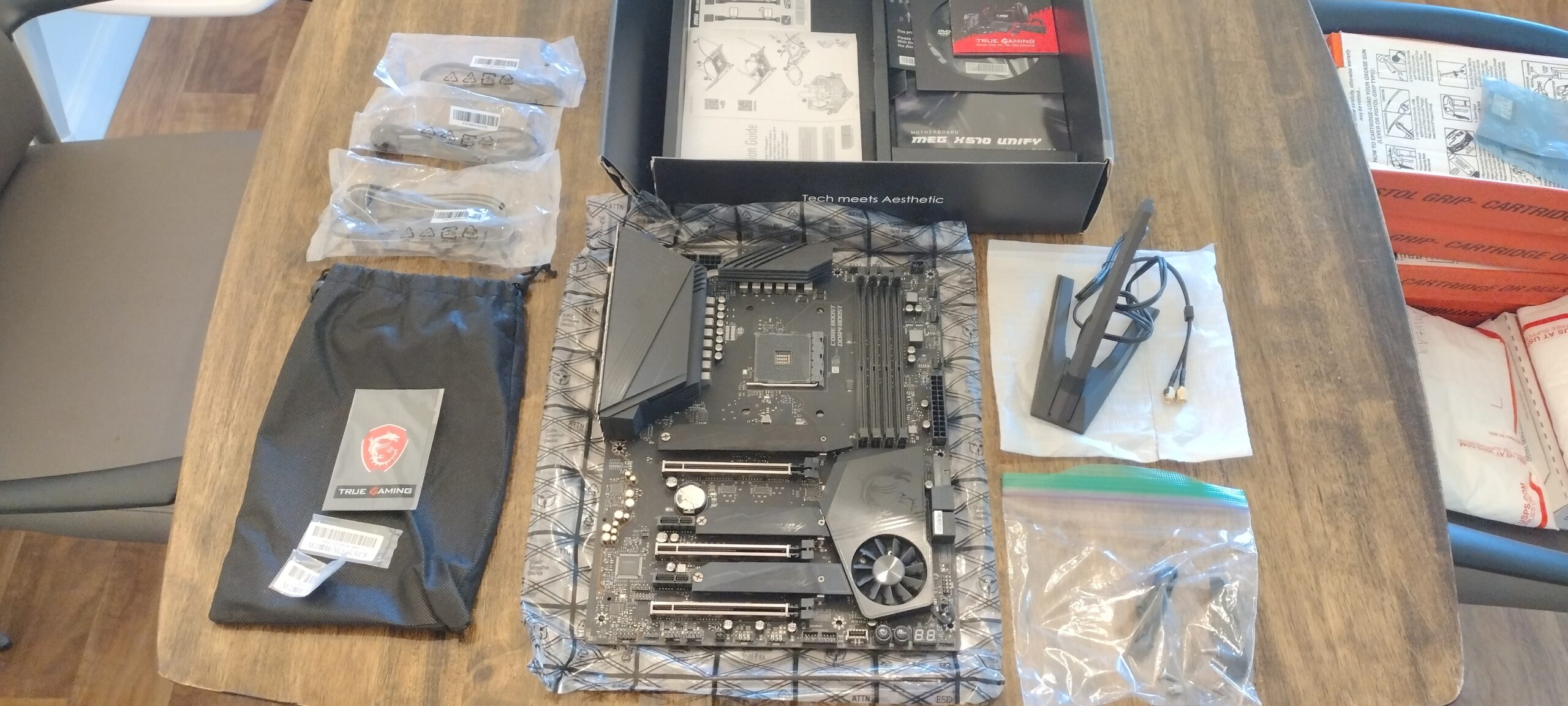

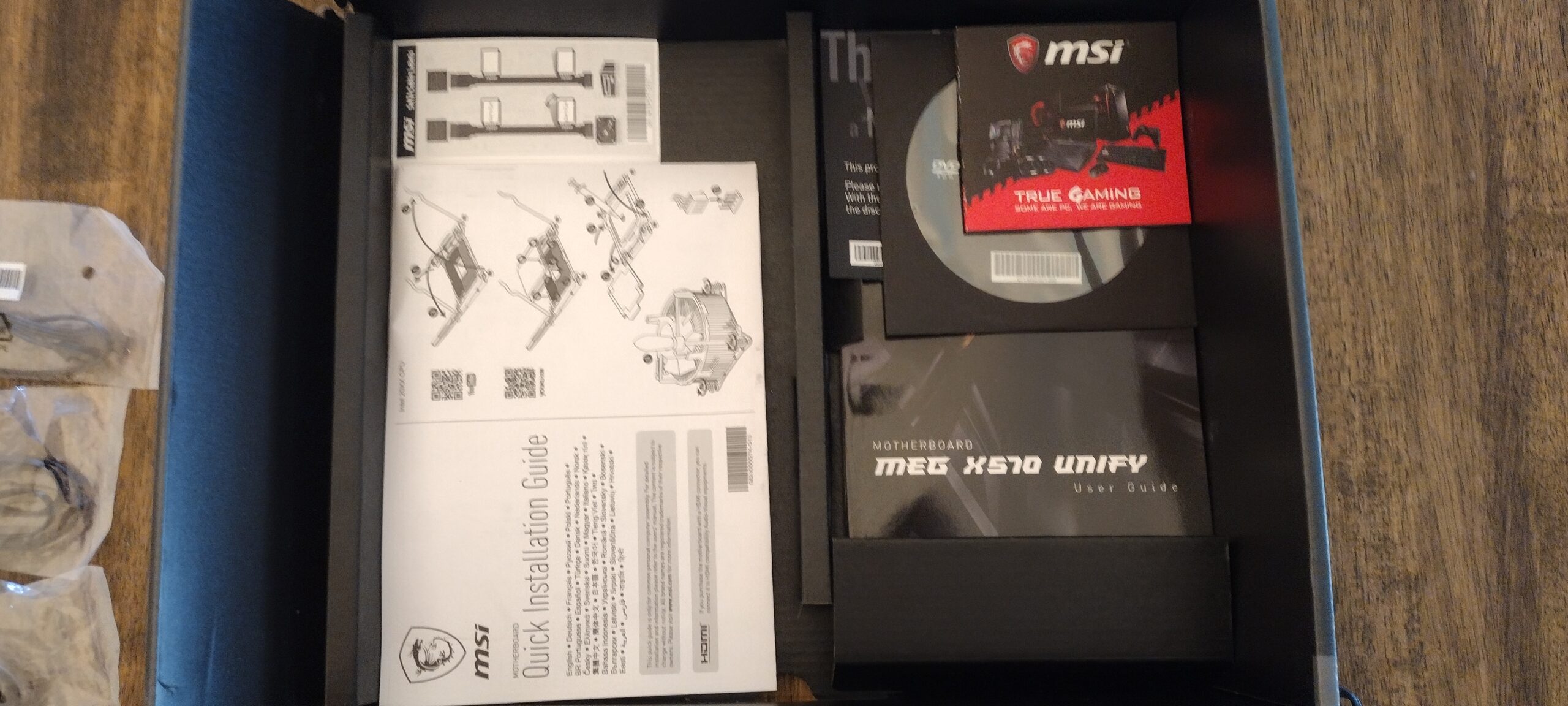

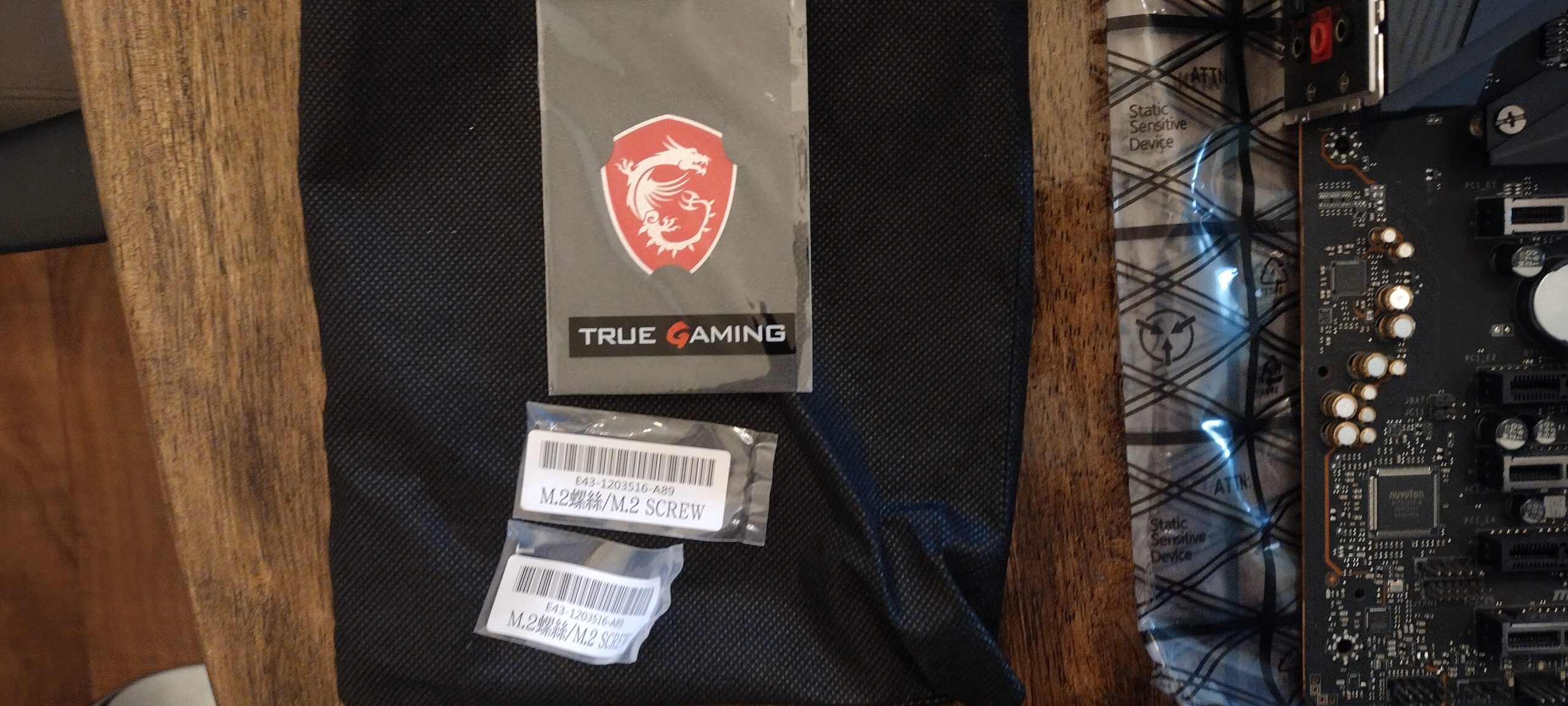

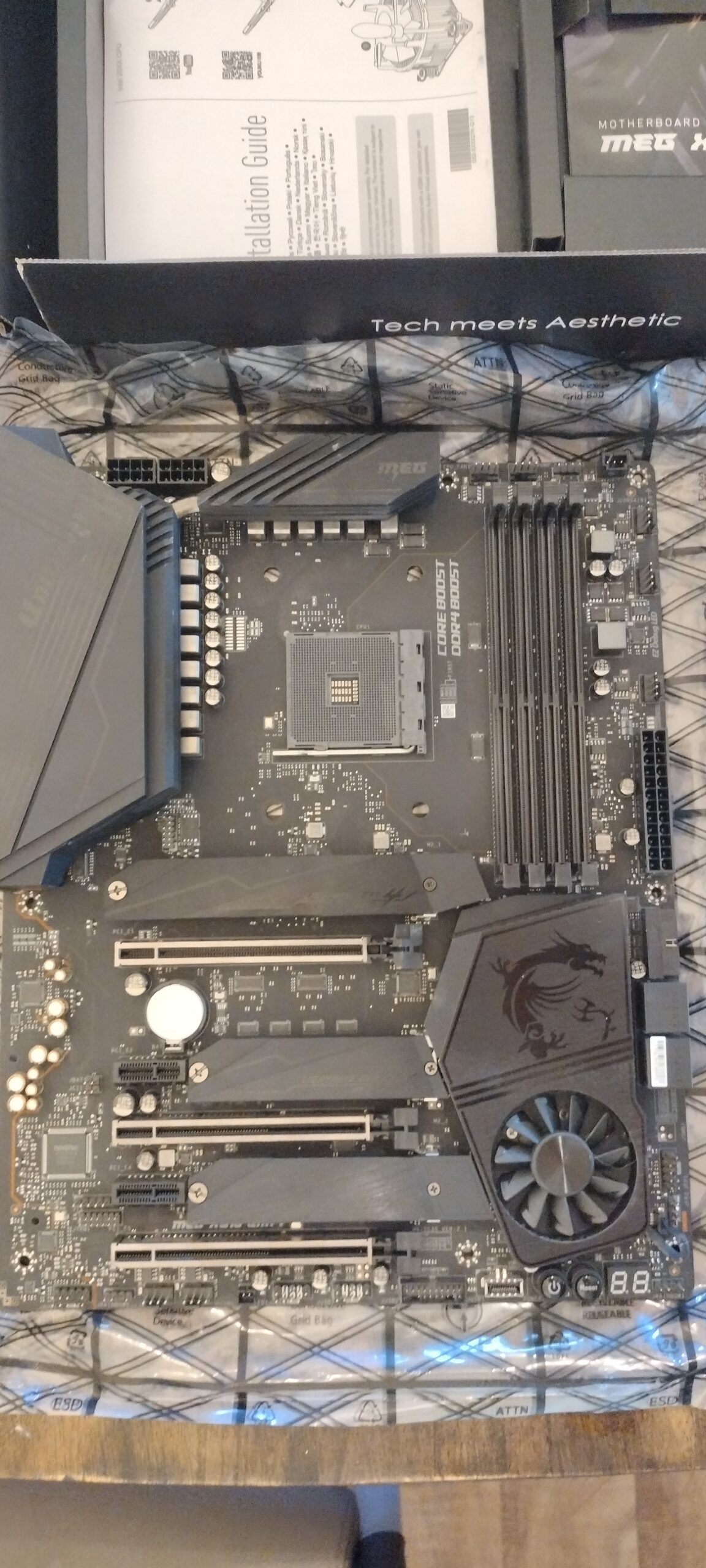

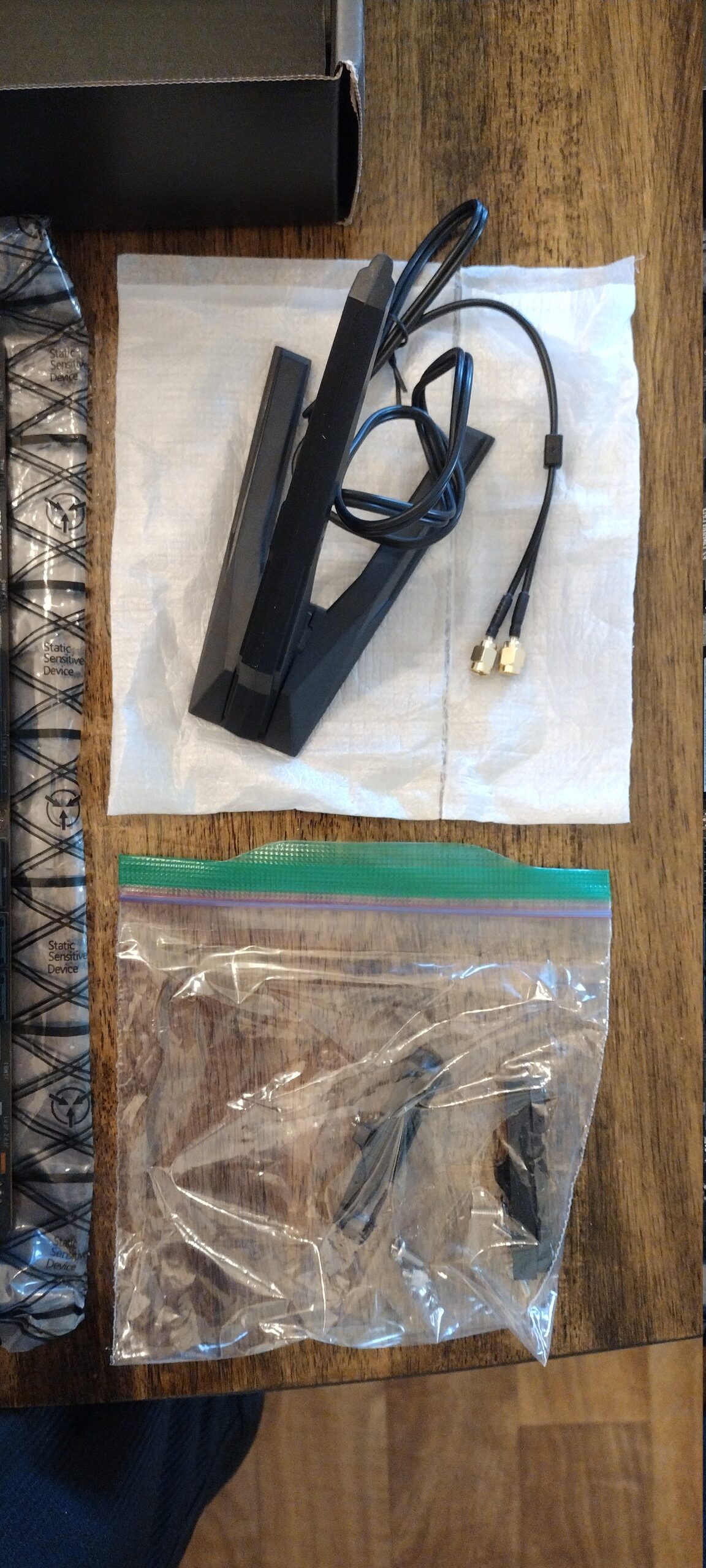

Excellent condition. Comes with original box and accessories. The motherboard was used in a lightly used gaming PC. Comes with accessories like the owners manual, driver CD, other pamphlets, sticker, msi bag, original wireless antennae, cables, and all 3 nvme heatsink ssd covers. 4x SATA cables are not included. AM4 socket, RAM, PCIe slots, SATA ports are all in excellent shape. Has Bluetooth and WiFi 6 and antennae.

The motherboard has the latest firmware from MSI and has been set to BIOS default/factory config.

Learn more about MSI MEG X570 UNIFY

Model
Brand
MSI
Model
MEG X570 UNIFY
Supported CPU
CPU Socket Type
AM4
CPU Type
Support for 3rd Gen AMD Ryzen Processors and future AMD Ryzen processors with BIOS update
Chipsets
Chipset
AMD X570
Memory
Number of Memory Slots
4×288pin
Memory Standard
3rd Gen AMD Ryzen Processors support DDR4 4600/ 4533/ 4400/ 4266/ 4133/ 4000/ 3866/ 3733/ 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC2nd Gen AMD Ryzen Processors, 1st and 2nd Gen AMD Ryzen with Radeon Vega Graphics Processors support DDR4 3600/ 3466/ 3200/ 3066/ 3000/ 2933/ 2800/ 2667 MHz by A-XMP OC MODE, and 3200/ 3066/ 3000/ 2933/ 2800/ 2667/ 2400/ 2133/ 1866 MHz by JEDEC
Maximum Memory Supported
128GB
Channel Supported
Dual Channel
Expansion Slots
PCI Express 4.0 x16
2 x PCIe 4.0/3.0 x16 slots (PCI_E1, PCI_E3)- 3rd Gen AMD Ryzen support PCIe 4.0 x16/x0, x8/x8 modes- 2nd Gen AMD Ryzen support PCIe 3.0 x16/x0, x8/x8 modes- Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics support PCIe 3.0 x8 mode*1 x PCIe 4.0/3.0 x16 slot (PCI_E5, supports x4 mode)* PCI_E3 slot is only available for 2nd and 3rd Gen AMD Ryzen processors.
PCI Express x1
2 x PCIe 4.0/3.0 x1 slots** The PCIe x1 slots can not be used simultaneously. PCI_E2 will be unavailable when installing the PCIe card in PCI_E4 slot.
Storage Devices
SATA 6Gb/s
4 x SATA 6Gb/s
M.2
2 x M.2 slots (M2_2/M2_3, Key M)*- Support PCIe 4.0/3.0 x4 and SATA 6Gb/s- Support 2242/2260/2280 storage devicesAMD Processor1 x M.2 slot (M2_1, Key M)*- Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen)- Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics)- Supports 2242/2260/2280/22110 storage devices* The speeds may vary for different devices
Onboard Audio
Audio Chipset
Realtek ALC1220
Audio Channels
7.1-Channel High Definition AudioSupports S/PDIF output
Onboard LAN
LAN Chipset
Realtek RTL8125
Max LAN Speed
10/100/1000/2500Mbps
Wireless LAN
Intel Wi-Fi 6 AX200- Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4-5 GHz (160 MHz) up to 2.4 Gbps- The Wireless module is pre-install in the M2_4 (Key-E) slot
Bluetooth
Supports Bluetooth 5
Rear Panel Ports
Back I/O Ports
1 x Clear CMOS Button1 x Flash BIOS Button1 x Wi-Fi/Bluetooth module1 x PS/2 keyboard/mouse combo port2 x USB 2.0 ports2 x USB 3.2 Gen1 ports1 x LAN (RJ45) ports3 x USB 3.2 Gen 2 Type A ports1 x USB 3.2 Gen 2 Type C port5 x OFC audio jacks1 x Optical S/PDIF OUT connector
Internal I/O Connectors
Onboard USB
2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)2 x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)1 x USB 3.2 Gen2 Type-C Port
Other Connectors
1 x 4-pin CPU fan connector5 x 4-pin system fan connectors1 x 4-pin water-pump connector1 x Front panel audio connector2 x System panel connectors1 x TPM module connector1 x Clear CMOS jumper1 x Chassis Intrusion connector1 x Power button1 x Reset button1 x 4-pin RGB LED connector2 x 3-pin RAINBOW LED connectors1 x 3-pin CORSAIR connector1 x 2-pin LED power input1 x Debug Code LED4 x EZ Debug LEDs
Physical Spec
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
12.0″ x 9.6″
Power Pin
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors
Features
Features
Supports 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics Desktop Processors for AM4 socket.Supports DDR4 Memory, up to 4600+(OC) MHz.Aluminum Cover with Extended Heatsink: All-metal extended heatsink cover enlarge the surface of heat dissipation, ensures even high-end processors to run in full speed.Lightning Fast Game Experience: PCIe 4.0, Triple Lightning Gen4 x4 M.2 with M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 Gen2.2.5G Gaming LAN with Latest Wi-Fi 6 Solution: Onboard 2.5G LAN with gaming LAN manager, combining latest Wi-Fi 6 solution which supports MU-MIMO and BSS color technology, delivering the best online gaming experience.Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide the best performance for enthusiast gamers and prosumers.Audio Boost HD: Isolated audio with dedicated processor combining ESS audio DAC with amplifier, deliver the breathtaking, game-changing sound to create the most exciting gameplay.Pre-installed I/O Shielding: Better EMI protection and more convenience for installation.

Additional information

Weight 1 lbs
Dimensions 12 × 8 × 4 in
