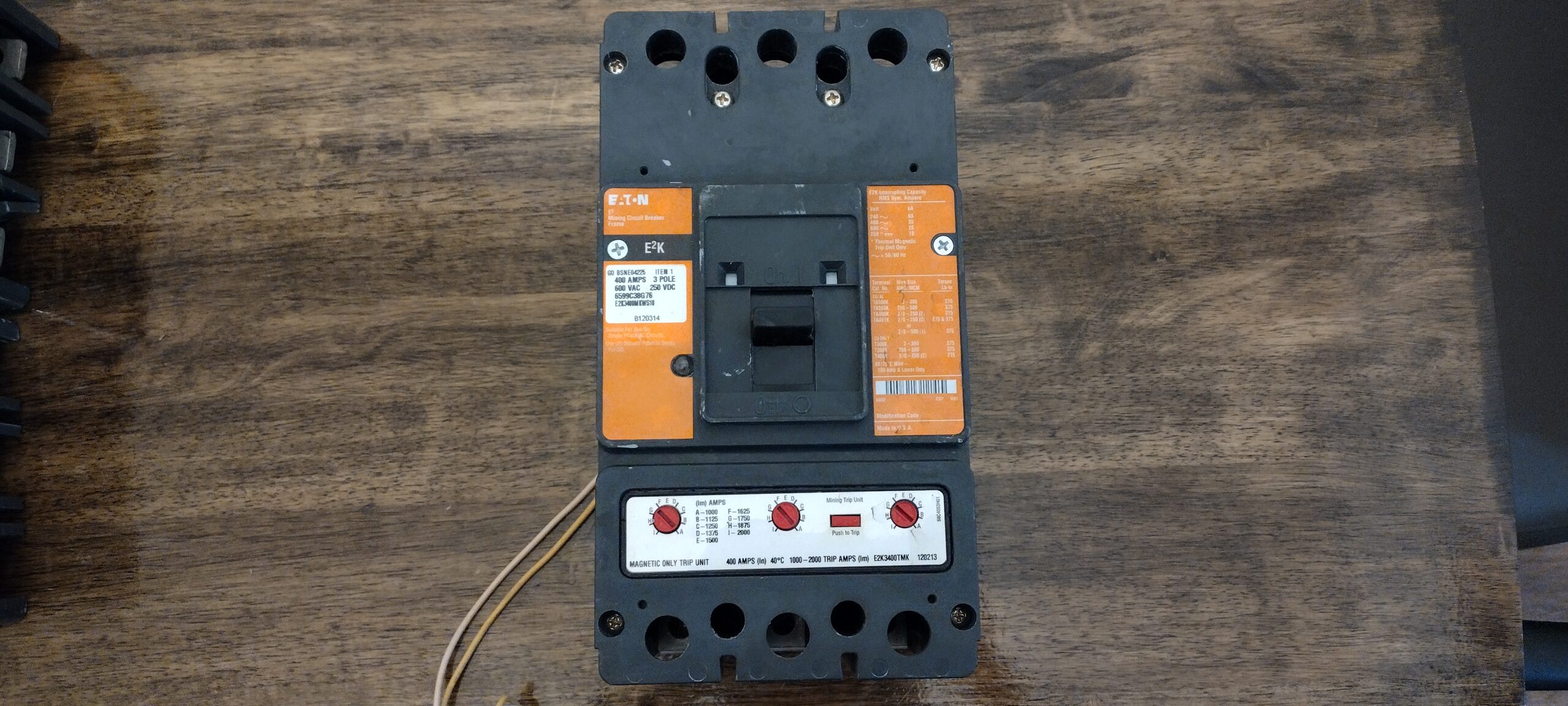

CUTLER-HAMMER E2K3400MKWS10 E2K MINING CIRCUIT BREAKER 400A 600VAC

$850.00

Out of stock

Category:

Description

CUTLER-HAMMER E2K3400MKWS10 E2K MINING CIRCUIT BREAKER

400A 600VAC 3P 250VDC

Eaton E2 mining complete molded case circuit breaker, K-frame, E2K, Interchangeable thermal-magnetic trip, 1000-2000A, Three-pole, 400A, 600 Vac, 250 Vdc, 110-240 Vac or 110-125 Vdc rear with left pigtail shunt trip, no terminals

GENERAL SPECIFICATIONS

PRODUCT NAME
Eaton E2 mining complete molded case circuit breaker
CATALOG NUMBER
E2K3400MKWS10
UPC
782114223505
PRODUCT LENGTH/DEPTH
4.1 in
PRODUCT HEIGHT
5.5 in
PRODUCT WIDTH
5.5 in
PRODUCT WEIGHT
11.5 lb
WARRANTY
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
CERTIFICATIONS
UL Listed
CSA Certified

PRODUCT SPECIFICATIONS

INTERRUPT RATING
35 kAIC at 480 Vac
10 kAIC at 250 Vdc
25 kAIC at 600 Vac
65 kAIC at 240 Vac
FRAME
K
TRIP RATING
1000-2000 A
AMPERAGE RATING
400 A
NUMBER OF POLES
Three-pole
TYPE
Specialty complete
CIRCUIT BREAKER TYPE
E2K

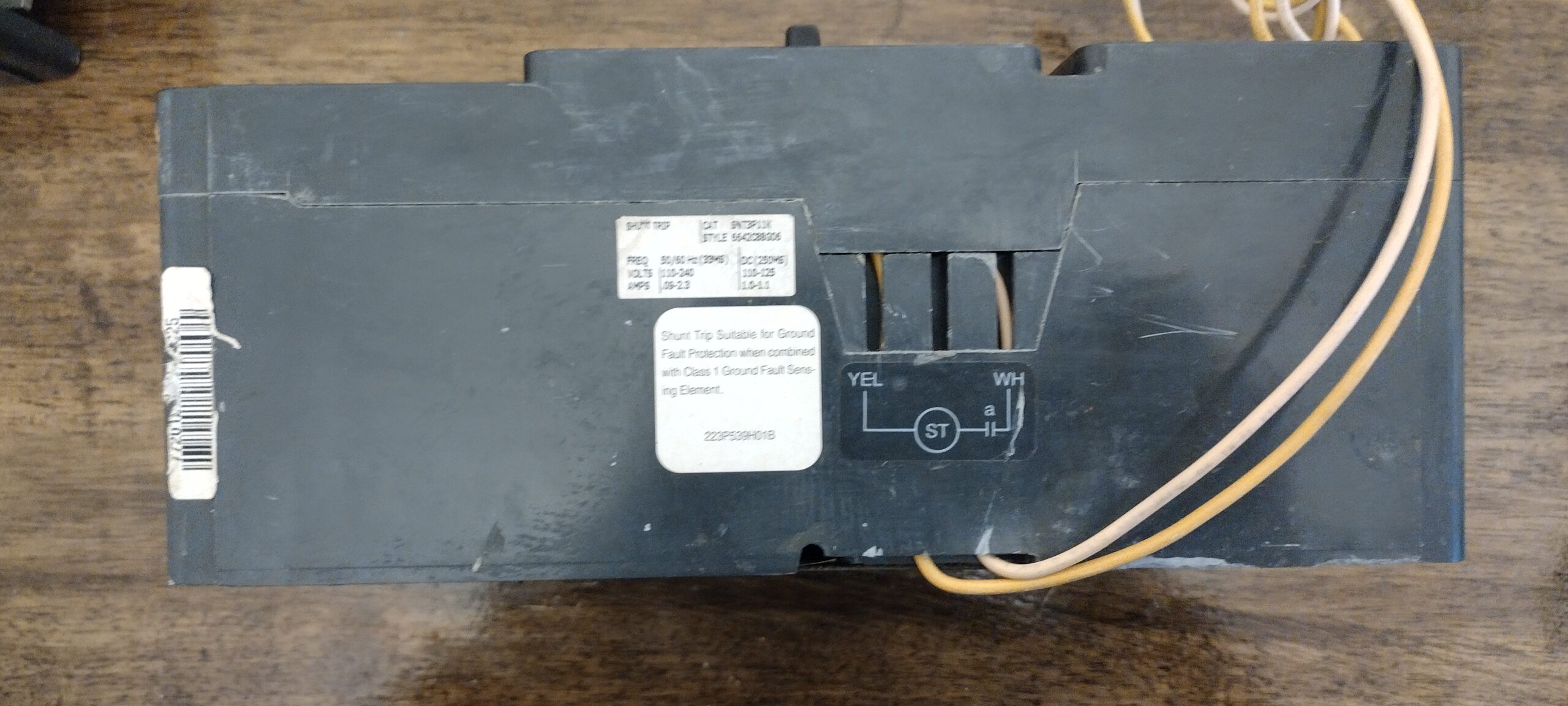

SHUNT TRIP
110-240 Vac or 110-125 Vdc rear with left pigtail
CLASS
Mining
CIRCUIT BREAKER FRAME TYPE
Complete breaker

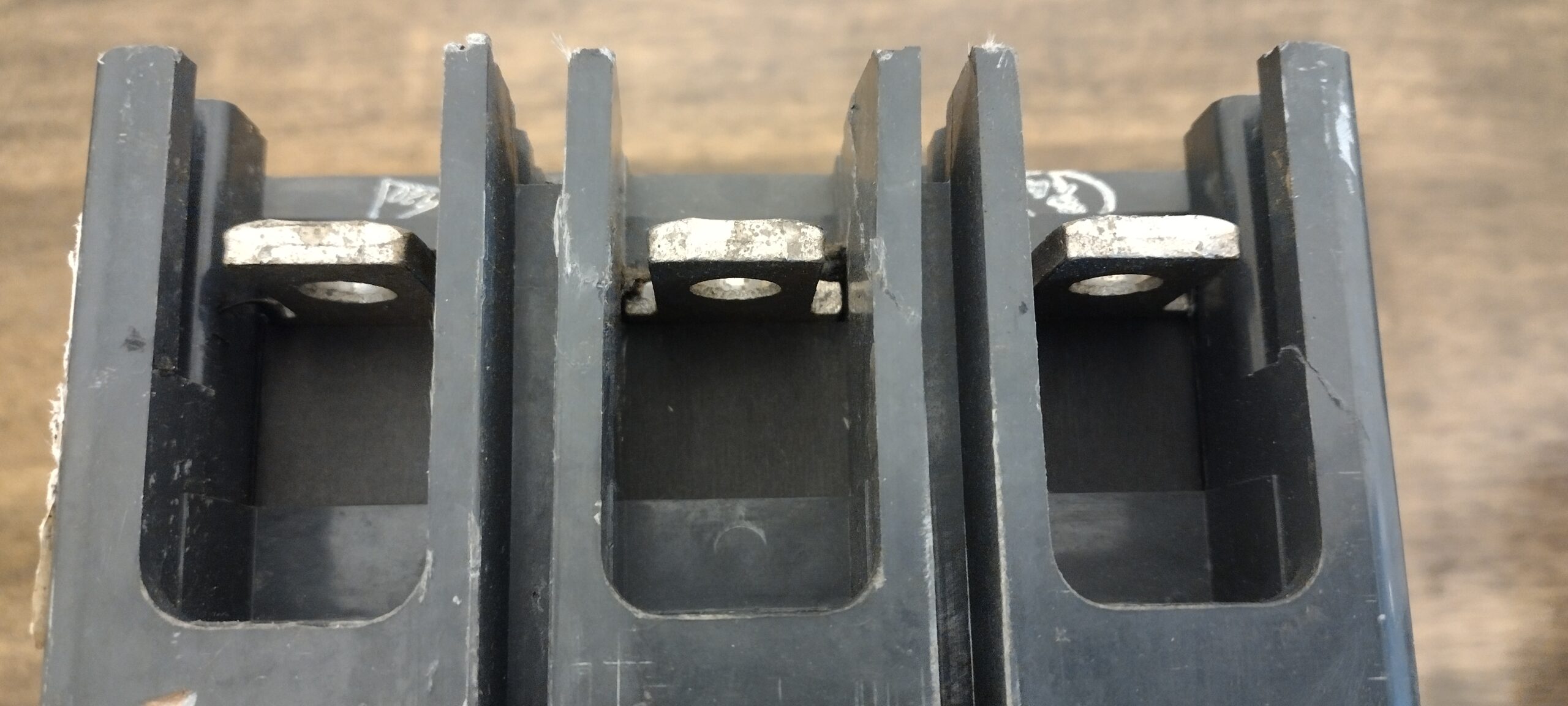

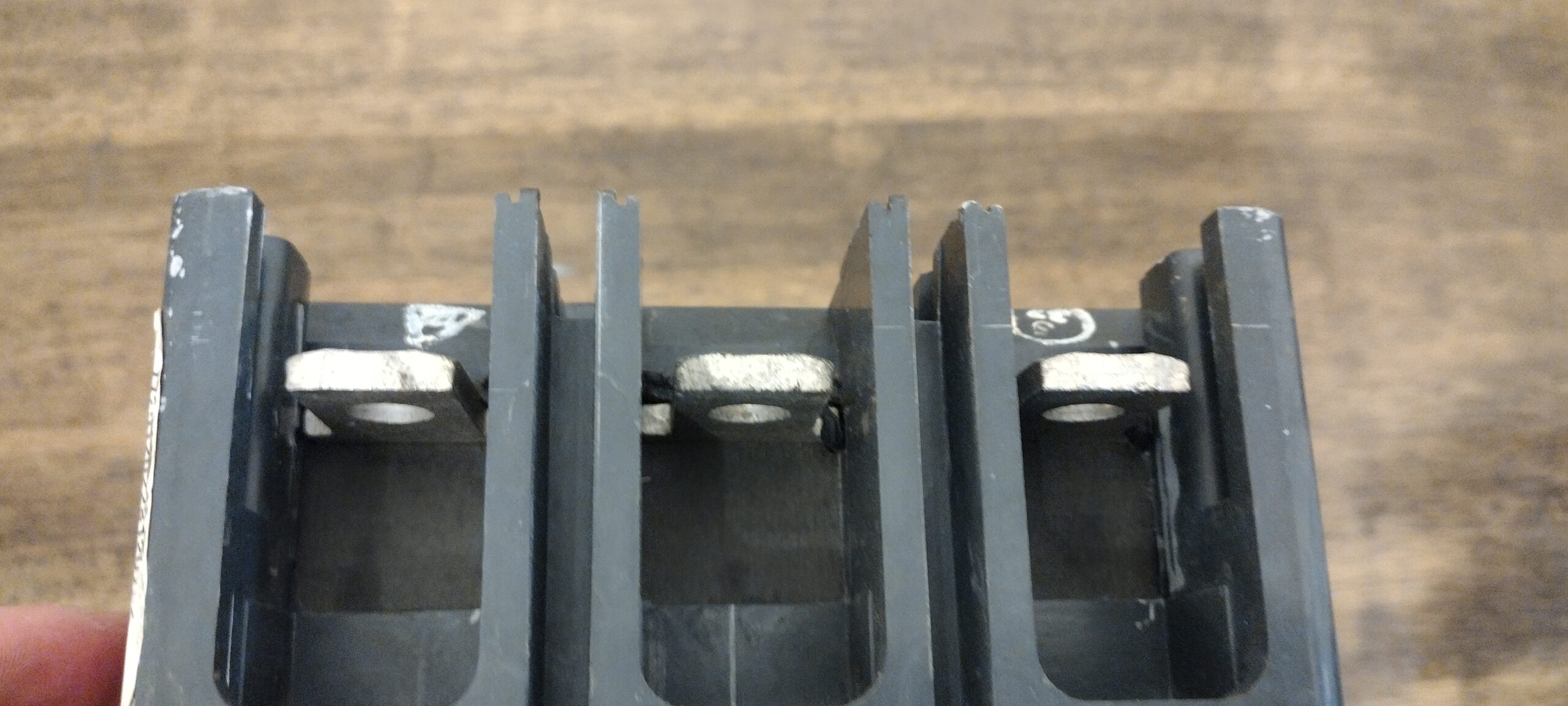

TERMINALS
Without terminals
VOLTAGE RATING
600 Vac, 250 Vdc

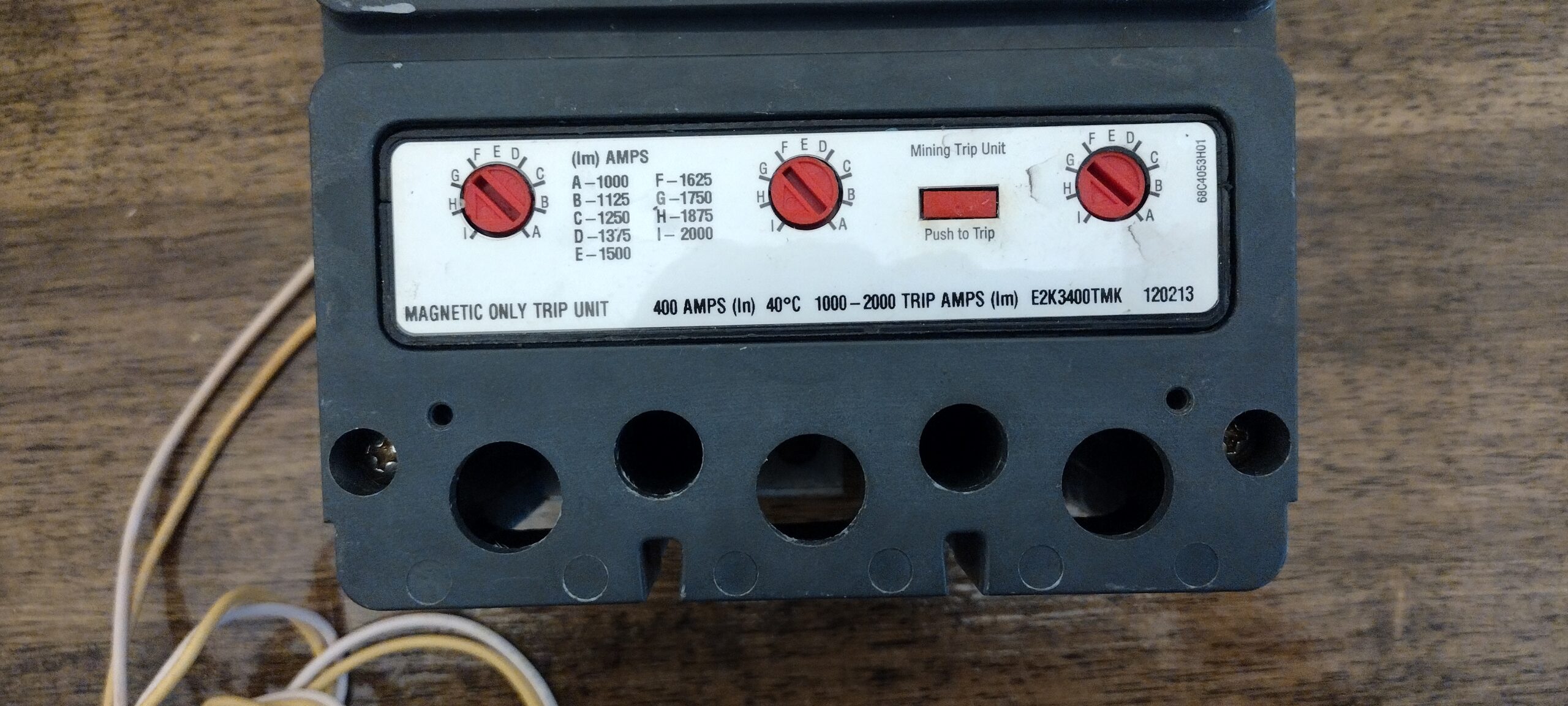

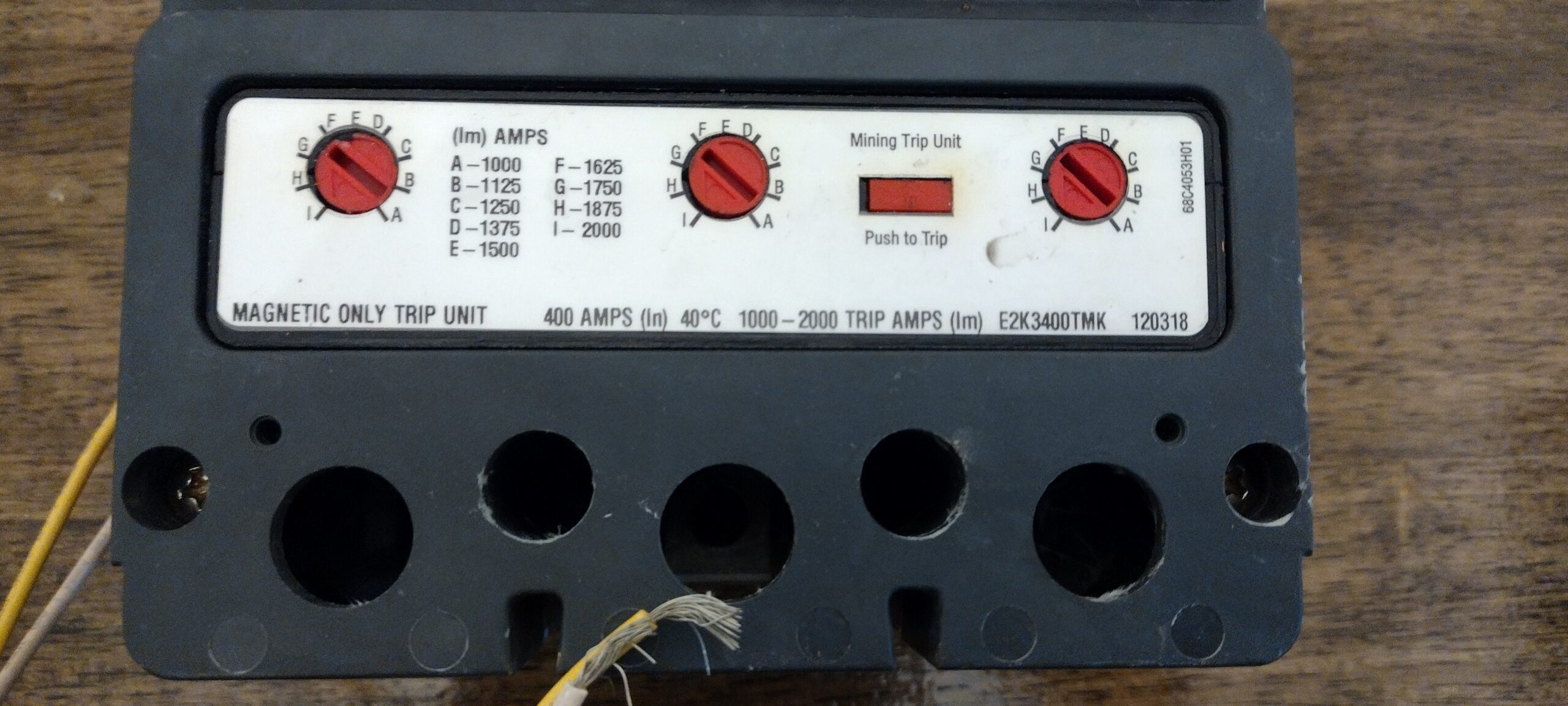

TRIP TYPE
Interchangeable thermal-magnetic
MAGNETIC TRIP RANGE
1000-2000A

Additional information

Weight 25 lbs
Dimensions 12 × 8 × 6 in
